Description

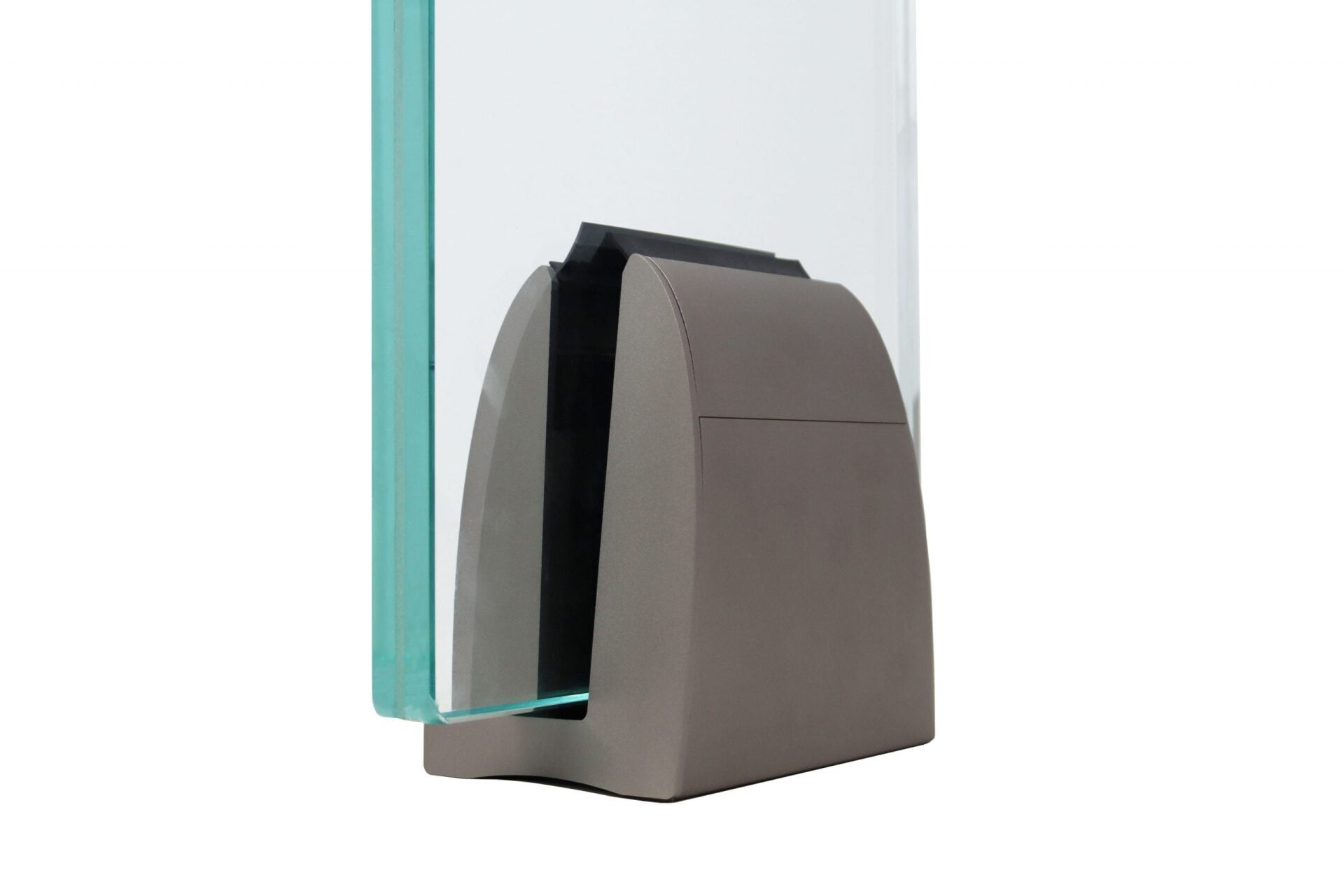

Our spigot based glass balustrade system comes as a complete kit to include all the parts you’ll require for a 1-metre installation. You are viewing our SPIG-LITE Kit in graphite grey , we also stock SPIG-LITE Spigots individually.
PRODUCT COMPATIBILITY
Suitable for base fixing to concrete or steel, indoors or outdoors.
Can achieve up to 0.74kN according to the installation configuration.
GLASS COMPATIBILITY
SPIG-LITE is compatible with the following glass thicknesses: 12mm/15mm/17.5mm/21.5mm. It is vital that you carefully check the building regulations for your project before choosing your glass thickness. Your glass thickness selection will determine the clamp kit, top bead and gasket configuration supplied.
As a guide, the following glass configurations and force loading can be achieved with SPIG-LITE
12mm Toughened glass with a handrail 0.36kN (internal)
15mm Toughened glass with a handrail 0.74kN (external/drop over 600mm)
21.5mm Toughened Laminate (PVB) with no handrail 0.74kN (external/drop over 600mm)
PRODUCT VARIATIONS
Your glass thickness selection determines the clamp kit, top bead and gasket configurations.
DIMENSIONS
Spigot Dimensions:
W = 86.27mm
H = 137mm
L = 125.5mm
WHAT’S INCLUDED
2x SPIG-LITE Spigots
2x SPIG-LITE Clamp Kits, to suit your glass thickness selection
4x Lengths of Top Bead, to suit your glass thickness selection
4x Lengths of Co-Extruded Gasket, to suit your glass thickness selection
4x End Caps
This product is available in anodised graphite grey and raw Aluminium. Please note that raw Aluminium should be powder coated or treated in order to prevent corrosion.
