Description
Want to upgrade the parapet wall round a terrace, balcony or walkway with an unobtrusive glass railing? Easy Glass Up is a cost-effective and easy-to-install solution that gives you maximum transparency and excellent safety.
‘Easy Glass Up’ top mount base profile with U-shaped channel to accept glass panels up to a height of 800mm.
Low profile design of 45mm width and 80mm height.
Supplied in lengths of 5000mm, suitable for trimming to size.
Aluminium with a matt silver finish (powder coated RAL 9006).
Strong and hard-wearing, perfect for both indoor and outdoor use.
Pre-drilled with 14mm mounting holes at a spacing of 200mm, allowing for fewer anchors.
Will accept mono and laminated glass thickness of 12mm – 17.52mm.
Simply the appropriate wedge kit for perfect glass positioning and security.
The brand-new Easy Glass Up system lets you create near-invisible glass railings for the top of parapet walls. Its base shoe is ultra-slender at just 80mm high, so there is nothing to interrupt the view. It’s perfect in combination with an Edge Protection profile on top of the glass. This way the railing will barely draw attention to itself.
Straightforward installation
Easy Glass Up glass railings install in no time, thanks to the lightweight, easily positioned base shoe, and the ingenious Safety Wedge system for glass mounting. In fact, the whole process can be carried out from within the parapet wall, so there is absolutely no need for scaffolding.
Proven safety
When you are installing a railing, safety is the top priority. Easy Glass Up has been successfully tested against multiple national building norms, including the German AbP and the British BS 6180. With infills of 800 mm high and 16,76 mm thick glass, an Up glass railing can withstand line loads of up to 1 kN/m.
Great design

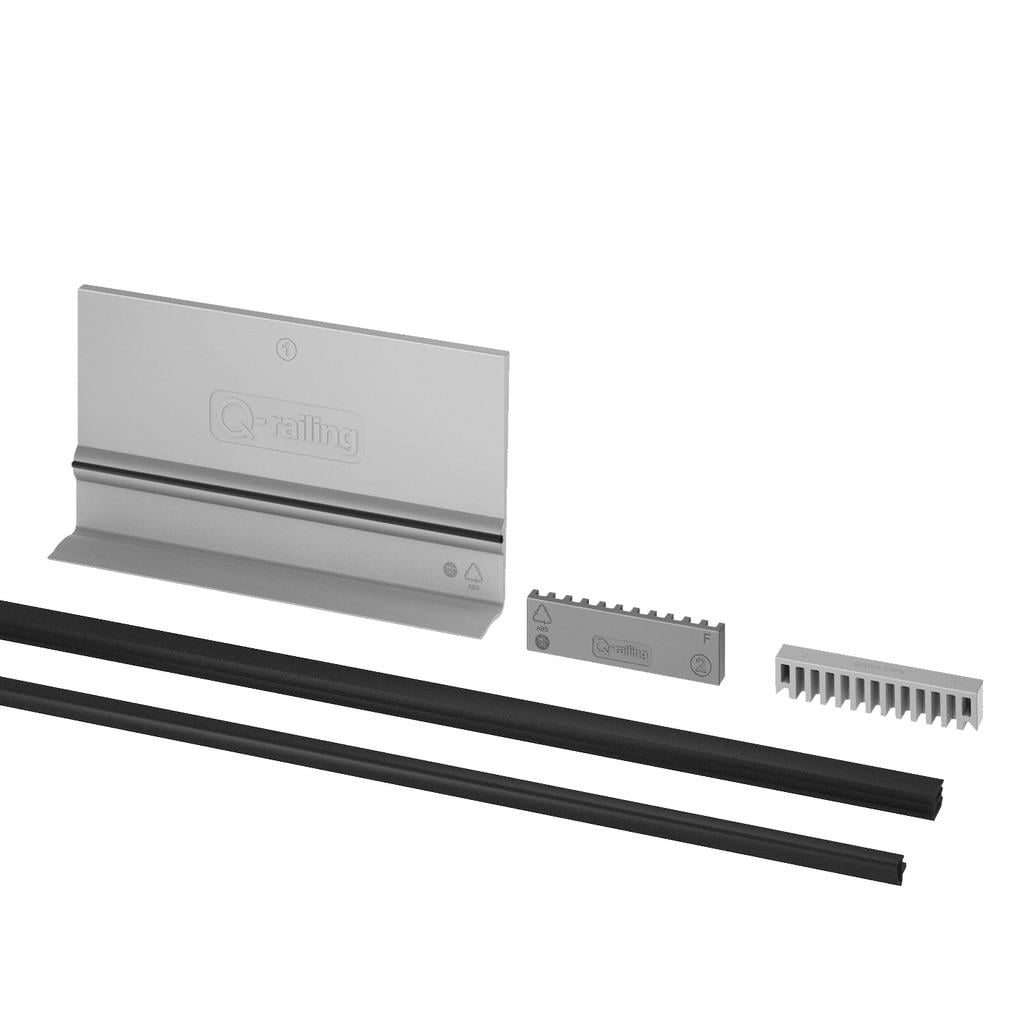

The Easy Glass Up glass railing system includes a top-mount base shoe, matching end caps and rubber sets for different glass thicknesses. The base shoe can be custom-bent for extra design freedom. Its base profile is crafted in high-grade aluminium, and thanks to the powder coating RAL 9006, there is no need for cladding.
